PumpRing - World's only Disposable Precision MicroPump that is integrated into your consumable, not connecting to it from the outside. This provides products with 5 key unique selling points:
Unrivalled precision: The pump is part of the fluidic pathway. Hence there is no air spring-related delay or imprecision for fluid flow.
No contamination risk: Closed loop operation preventing product exposure to the environment.
No wasted fluid: Pump can be positioned directly at the fluid source, ensuring every drop is used.
No cleaning required: With no leftover residues in tubes, cleaning steps are eliminated entirely.
Low cost: Replacing precision pumps out of the instrument cuts cost and extends instrument life due to eliminated contamination risk.
PumpRing enables thus far impossible fluid handling opportunities.

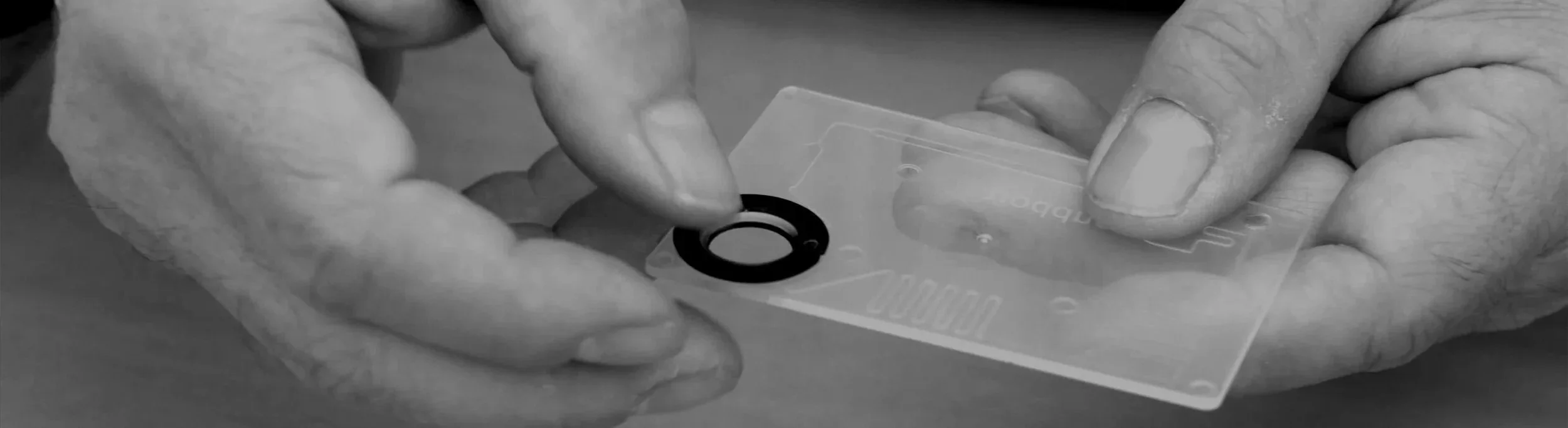

Easily integrated into any moulded cartridge / disposable
Large range of pumping speeds available (from uL/min to ml/min depending on configuration
Low surface energy Polypropylene material ideal for (molecular) medical applications
Highly suited to pick and place high volume fully automated manufacturing
Enables on-card closed loop pumping
Inexpensive, light-weight and disposable PumpRing
Standard or bespoke options available
Consistent and reliable flow
Simple integration into instrument with zero net force
100% flexible and accurate programming manually or via Python or other
Patented options for integration of valves and multiple inlets and outlets
-

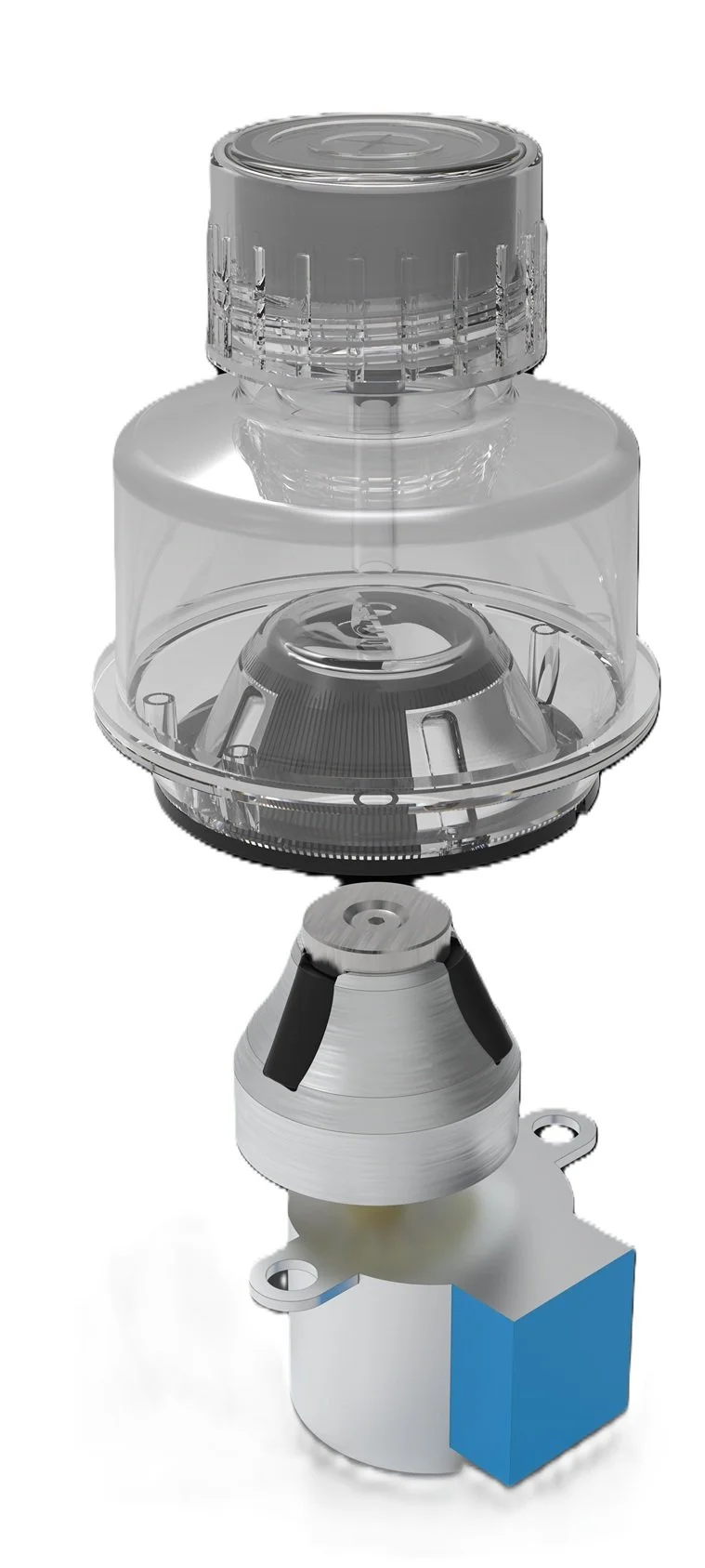

PumpRing is a deconstructed peristaltic pump.
The 2-shot moulded PumpRing replaces the tube in traditional peristaltic pumps.
The second half of the flow channel is an integrated design feature of the disposable cartridge.
-
No. PumpRing is extremely cost effective. The pump channel is an integral part of your disposable design and therefore free.
Additionally you will need one more component, the 2-shot PumpRing element, which is produced at high volumes and is very affordable, and a fast laser welding process that can be highly automated.
-
Yes, but not as a stand-alone product itself. We are working with several companies to integrate the power of PumpRing into their products at the moment.
-
Yes, please use the enquiry form at the bottom of this page and we’ll discuss your requirements and provide you with a quotation.
-

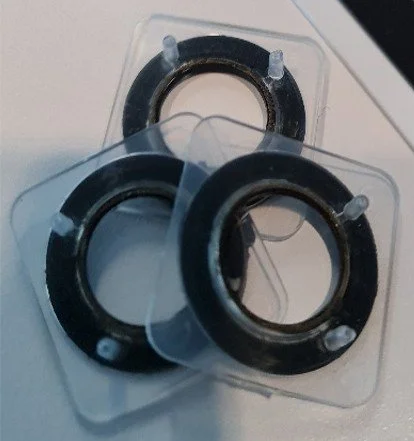

We have 2 PumpRing options.
27mm diameter for pumping 0 to 100ml/min
12mm diameter for pumping 0 to 2ml/min
PumpRing enables completely novel products

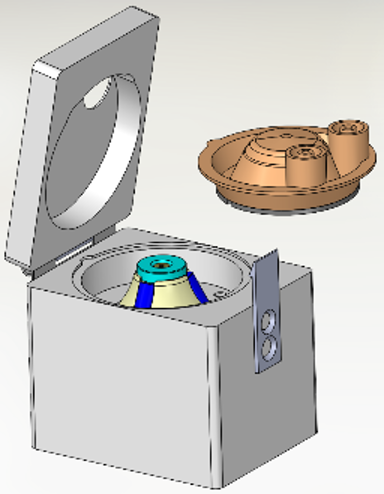

Stand-alone / OEM
Take control of all your pumping requirements. Microliter and Milliliter Flow. PumpRing change in seconds.
Full control via micro-USB.

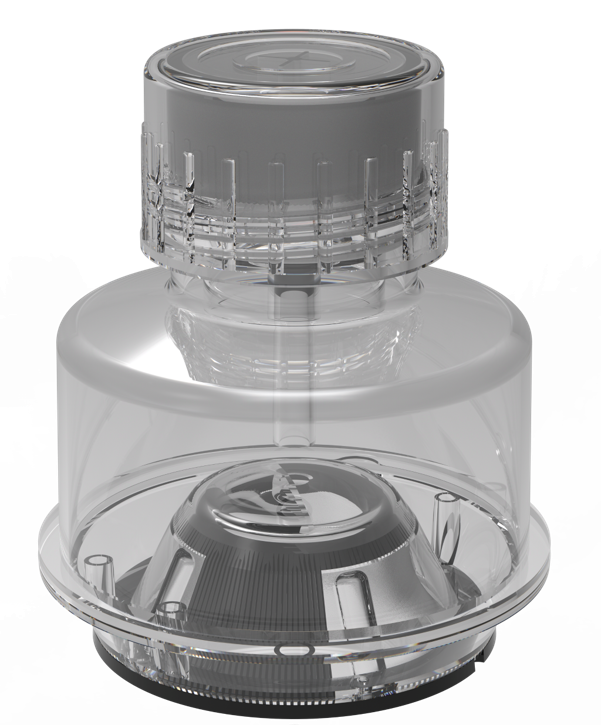

Pump Cup
Simply add a pump to your disposable product to enable thus far impossible product options.
Fluid dispensing or sucking up.

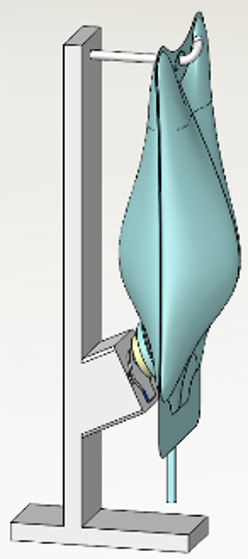

Infusion bag
Significantly reduce changeover time, bench space, waste, and cost.
“Sticky” product: bags require stand with PumpRing actuator unit.

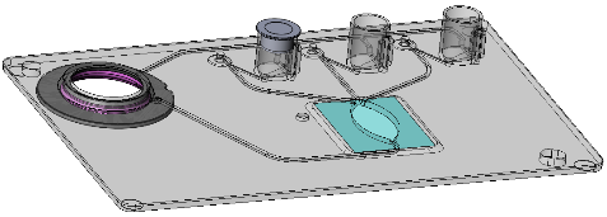

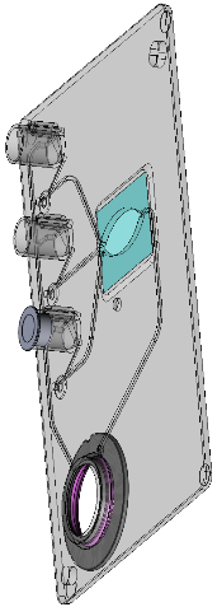

Microfluidic Cartridge
Integrate a pump into your fluidic system and control your fluids like never before.
Closed loop flow, mixing, etc.
Instrument contamination risk eliminated.

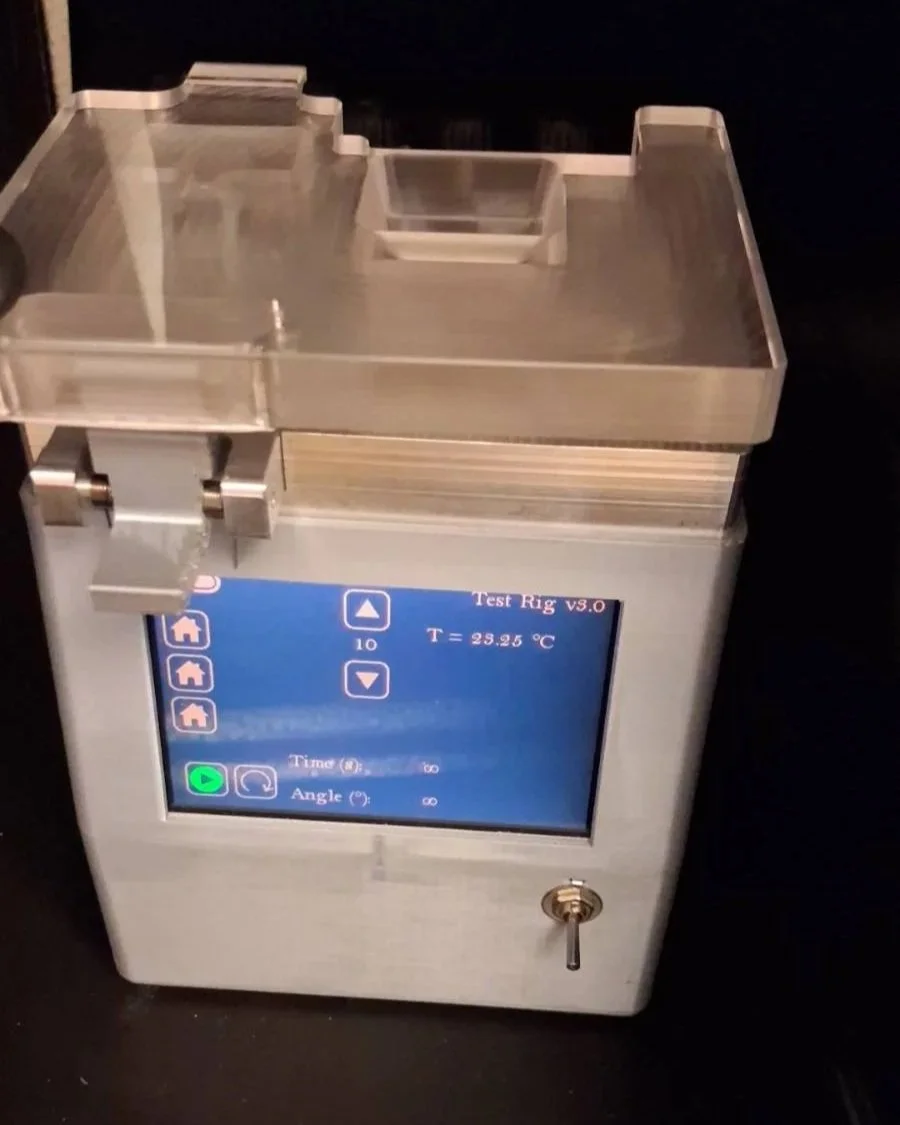

Evaluation Kit
We have Evaluation Kits available for testing PumpRing in your lab.
They can be programmed manually using a touch screen interface, or connected via USB to any PC and controlled by Python or microPython.
Interested in PumpRing?
Please fill out the form and we’ll get in touch with you as quickly as we can to discuss your product.
